JXF Industrial Control Box -500V Three-Phase Power

JXF Control Box is a versatile solution for 50Hz/500V systems (≤250A), offering motor protection and leakage/overload/short-circuit safeguards. This JXF control box features compact, durable construction for harsh environments (-25°C to +40°C). Ideal for metallurgy, petrochemicals, and urban infrastructure, the JXF control box ensures reliable operation at ≤2000m altitude with 90% humidity resistance. Its phase-loss protection and corrosion-resistant design meet demanding industrial, commercial, and residential applications.

    Contact us
    product details

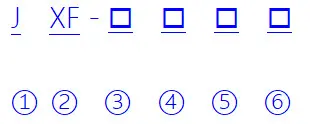

    Type Designation

    JXF-Industrial-Control-Box-6
    1 Control box
    2 XF indoor,FF outdoor
    3 "1"represents metal door
    "2"represents transparent window door
    4 Height
    5 Width
    6 Depth

    Structural Features

    1. Multiple series, multiple structures, welded, split, assembled; Outdoor and indoor types

    2. Multiple double-layer door structures, safe and reliable to use

    3. Multiple protection levels: IP20 IP40、IP43、IP54、IP65; Can meet the needs of different places

     product Display

    JXF-Industrial-Control-Box

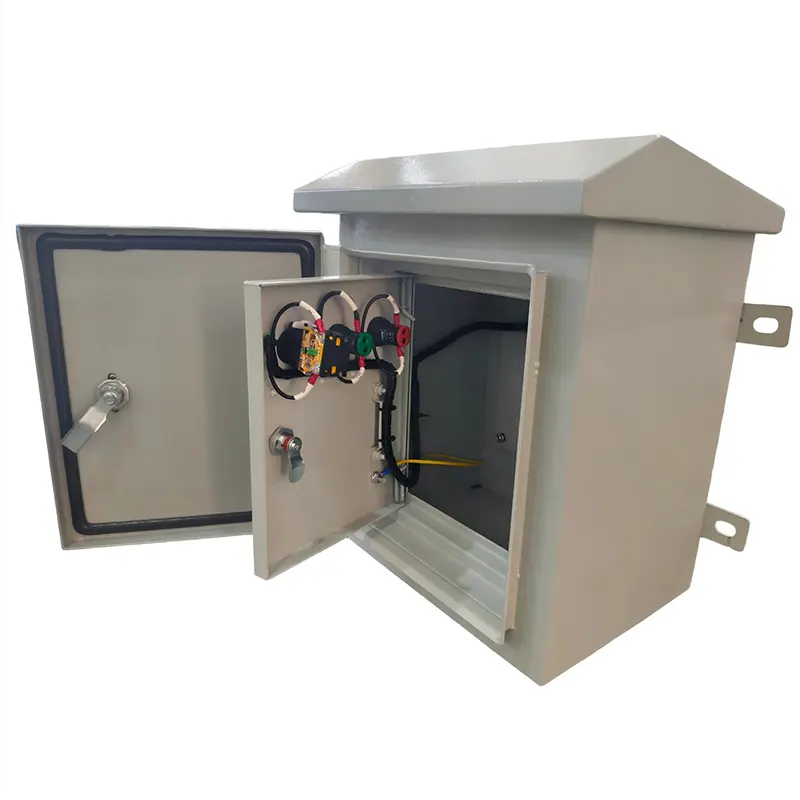

    JXF-Industrial-Control-Box-(1)

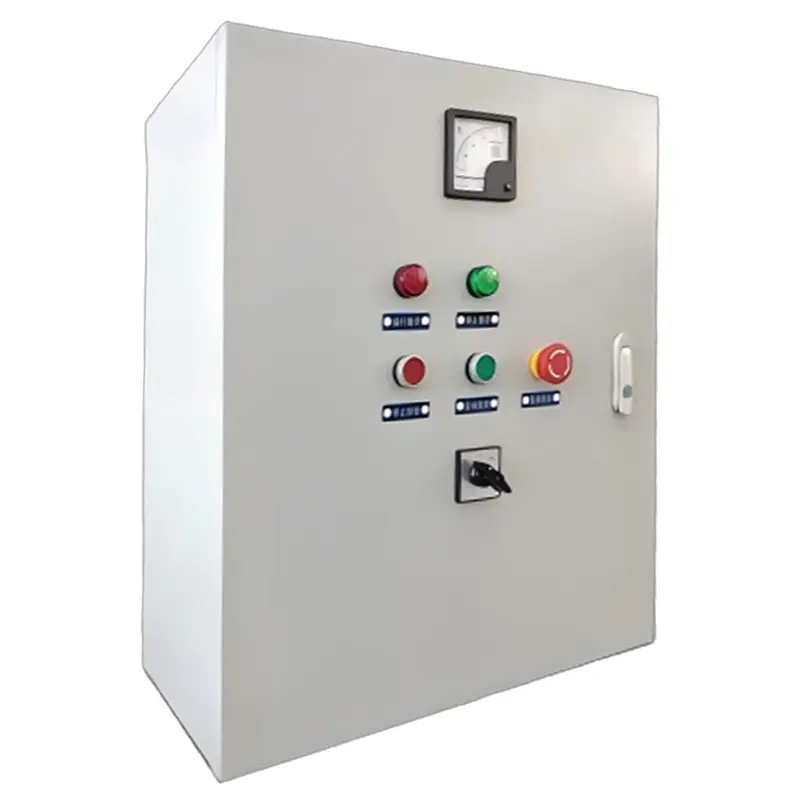

    JXF-Industrial-Control-Box-(2)

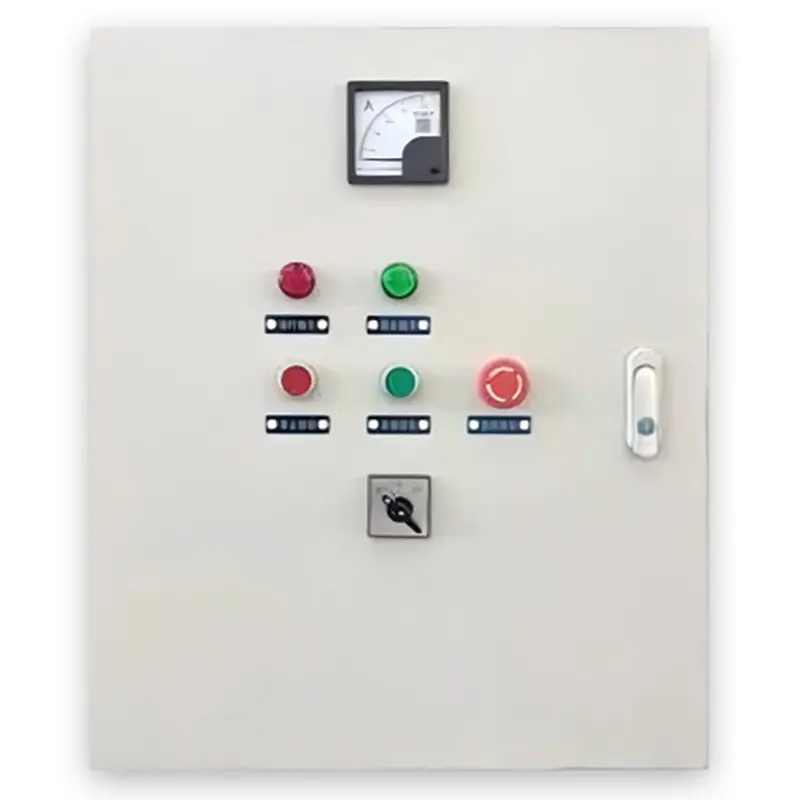

    JXF-Industrial-Control-Box-(3)

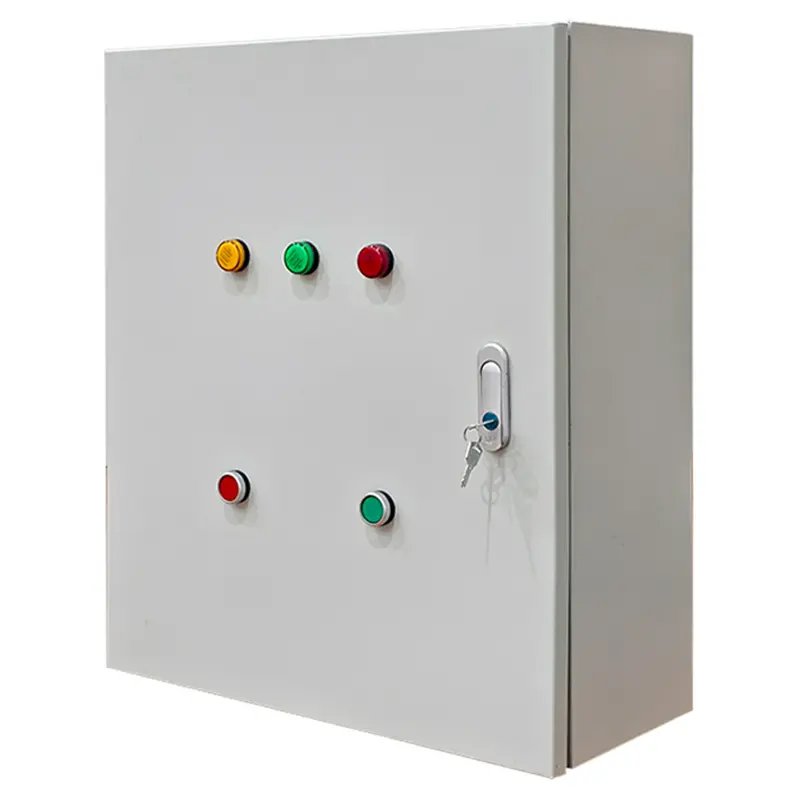

    JXF-Industrial-Control-Box-(4)

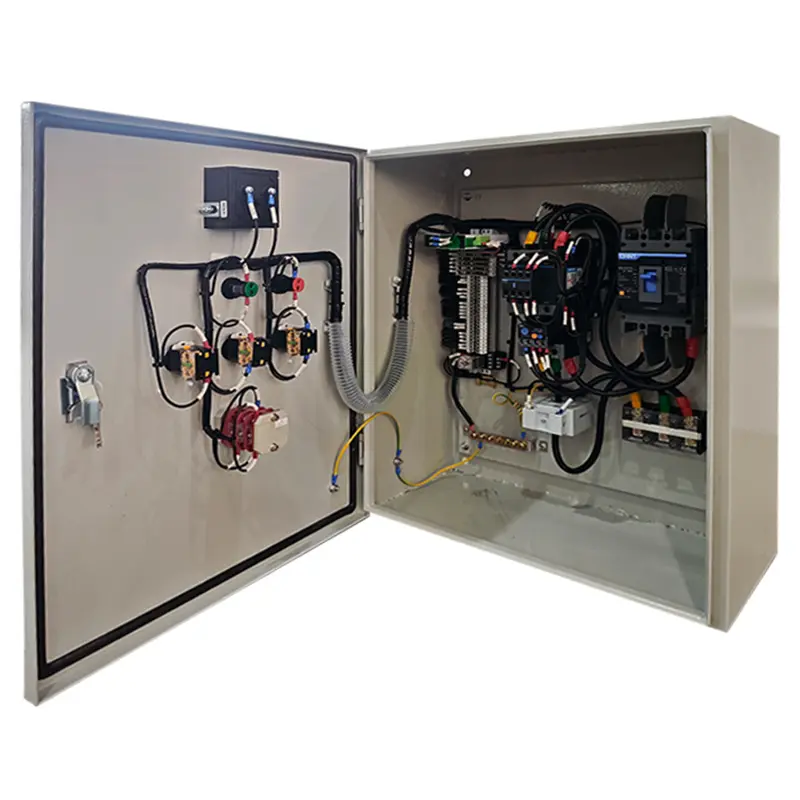

    JXF-Industrial-Control-Box-(5)

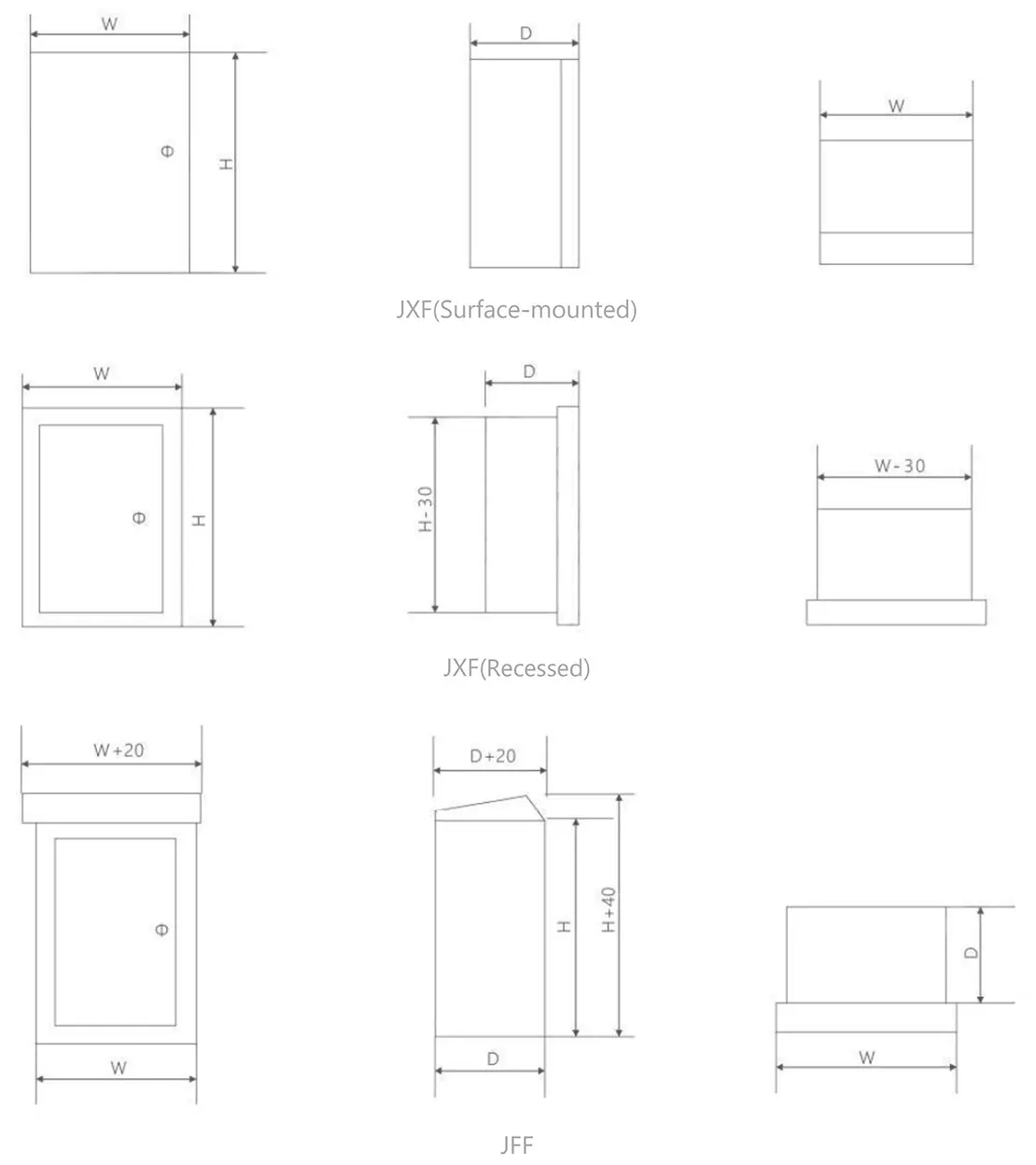

    Installation diagram

    JXF-2

    Overall Dimensions (welded)

    Specification Height Width Depth Steel Sheet Thickness Structural Features
    2520/14 250 200 140 1.2 JXF: Surface-mounted and Recessed Types,JFF: Metal Door and Transparent Window Door Types, Door with Sealing Rubber Gasket (Waterproof).
    Equipped with Top/Bottom Cable Ports and Mounting Baseplate,Cable Ports Pre-installed with Sealing Plates,Door Opening Angle >90°,JXF /JFF1:25 Specifications Each,JFF2: 18 Specifications.
    3025/14 300 250 140
    3025/18 300 250 180
    3030/14 300 300 140
    3030/18 300 300 180
    4030/14 400 300 140
    4030/20 400 300 200
    5040/14 500 400 140
    5040/20 500 400 200
    5040/23 500 400 230
    6040/14 600 400 140
    6040/20 600 400 200
    6040/23 600 400 230
    6050/14 600 500 140 1.5
    6050/20 600 500 200
    6050/23 600 500 230
    7050/16 700 500 160
    7050/20 700 500 200
    7050/23 700 500 230
    8060/20 800 600 200
    8060/23 800 600 230
    8060/25 800 600 250
    10080/20 1000 800 200
    10080/25 1000 800 250
    10080/30 1000 800 300
    Note: Dimensions Customizable per Client Drawings

    Ordering Notice

    When placing an order, please indicate:

    Model number

    Installation method

    Structural type and external dimensions

    System diagram and control schematic diagram

    Special requirements to be resolved through negotiation with the manufacturer
