Intelligent wireless automatic gas fire extinguishing device-Perfluorohexanone Series

Automatic gas fire extinguishing devices monitor signals related to electrical fire hazards—such as wire temperature, ambient space temperature, and smoke—through internal fire detection sensors. They enable online measurement, collection, analysis, and control of data. Equipped with RS485 and MODBUS communication interfaces, they can connect to computer monitoring systems. Optional 4G or Lora wireless communication interfaces are available to upload data wirelessly to the cloud platform, allowing users to view on-site data and perform remote control via computer or mobile app from any location.

product details

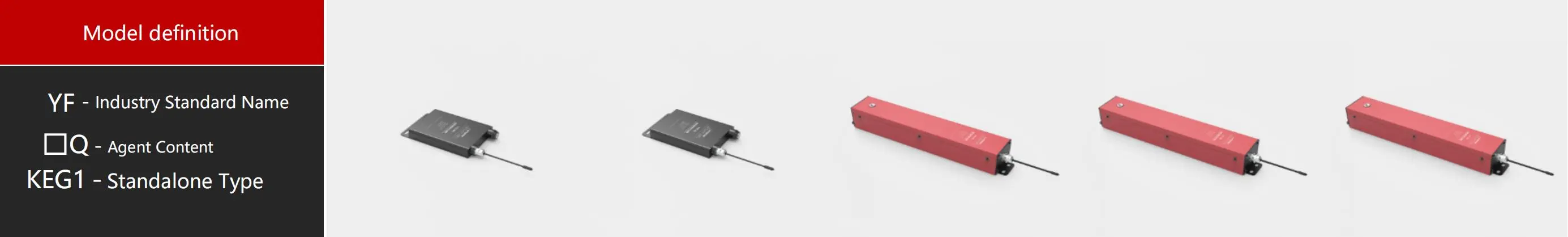

Type Designation

Product Name: Intelligent wireless automatic gas fire extinguishing device
Product Model: MR/YF□Q-KEG1
Fire suppressant: Perfluorohexanone
Product Type: Stand-alone Type
Trigger Mode: Electric Start + Thermal Start
Installation Method: Nut Press Fit

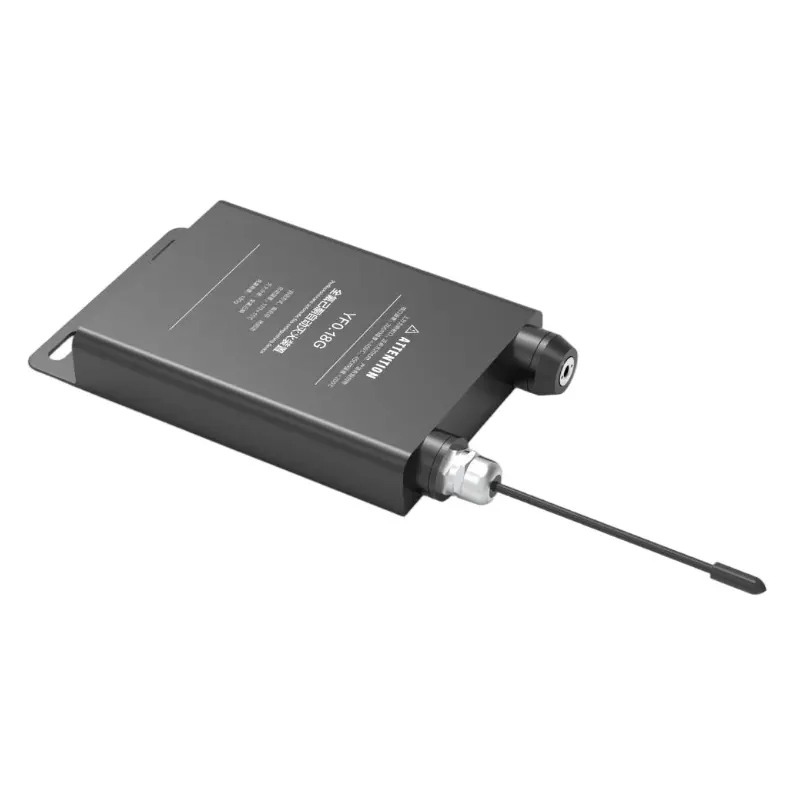

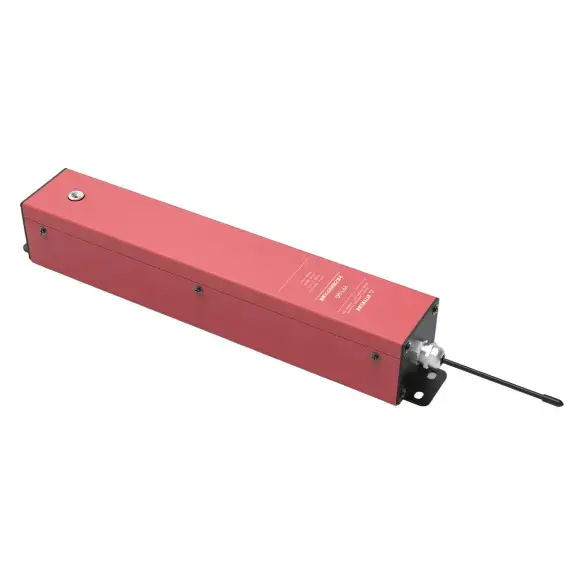

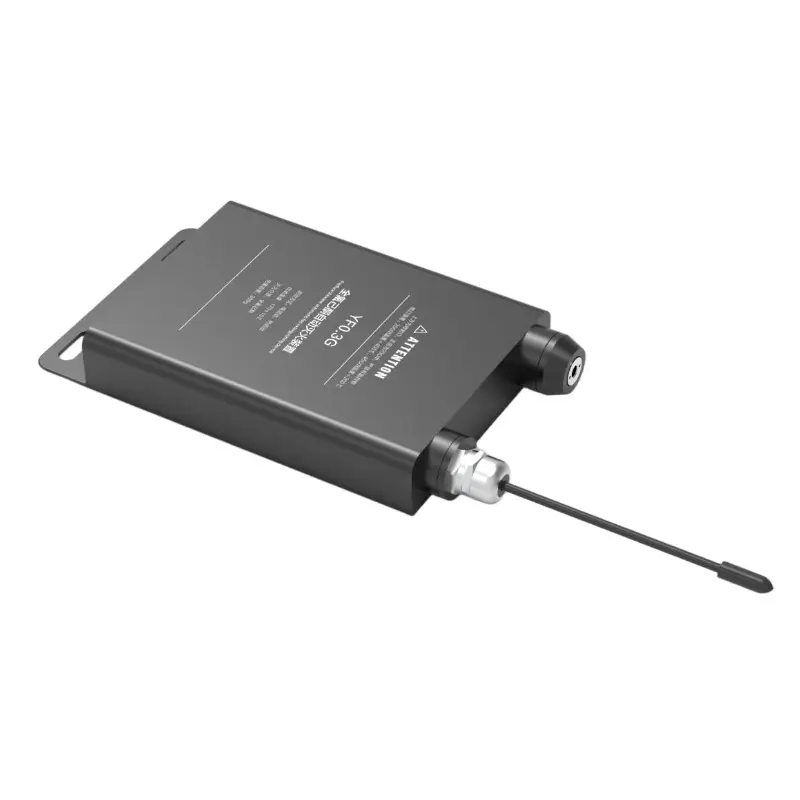

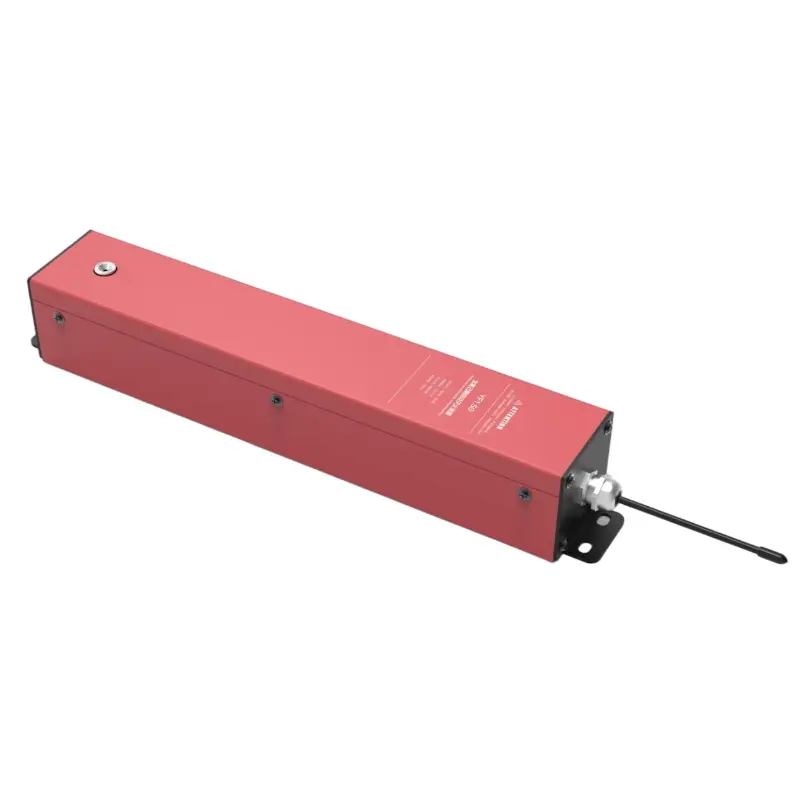

product Display

Product features

√ It consists of a wireless alarm control unit and a perfluorohexanone fire extinguishing device.
√ Simultaneous online detection of wire temperature, ambient temperature, and smoke to prevent electrical fire hazards.
√ Equipped with various communication interfaces such as RS485, 4G, and Lora.
√ Functions include real-time data collection, historical curves, event recording, and trend analysis.
√ The split-type product design allows for easy replacement of the extinguishing unit by the user after deployment, enabling multiple reuses and reducing operational costs.

Technical Parameters

Function configuration	MR/YF0.18Q/KEG1	MR/YF0.3Q/KEG1	MR/YF0.5Q/KEG1	MR/YF1.0Q/KEG1	MR/YF1.5Q/KEG1
Agent Quantity	180g	300g	500g	1000g	1500g
Protected Space	≤0.3m³	≤0.6m³	≤1m³	≤2m³	≤3m³
Dimensions	1458020mm	14512520mm	6363362mm	6363362mm	6363442mm
Energy Storage Method	Non-stored Pressure Type
Application Method	Total Flooding or Local Flooding
Discharge Time	≤14s
Discharge Delay Time	≤0.5s
Nozzle Thermal Clearance	Temperature at 400mm from nozzle ≤75℃
Surface Temperature of Enclosure	≤75℃
Extinguishing Density	100g/m³~130g/m³
Agent Service Life	6 Years
Protected Area Requirements	Protected area should be relatively enclosed
Installation Method	screw fixation
Operating Environment	-40~+85℃ ＜95%RH
Activation Method	Logical activation (temperature exceeds 100℃ and smoke detected simultaneously)
	Remote activation (via host or cloud platform)
	Manual forced start (emergency button, press and hold for 3 seconds)
	Over-temperature activation (when any point of thermal detection line exceeds 170℃)

Performance Analysis Table of Different Agents

Product Comparison	Non-pressurized Perfluorohexanone Device	Ultra-fine Dry Powder	Hot Aerosol	HFC-227ea
Extinguishing Concentration	4%-6%	120g/m3	100g/m3	6.7%-8.7%
Harmful Concentration	10%	Strong Asphyxiation	Strong Asphyxiation	9%
Extinguishing Mechanism	Heat absorption & Chemical inhibition	Smothering & Oxygen reduction	Isolation, smothering & Heat absorption	Chemical inhibition
Pressurized?	No	No	No	Yes
Safe for Occupied Spaces?	Yes	No	No	No
Suitable for Electrical Equipment	Yes	No	Yes	Yes
Residue	None	Heavy powder residue	Some powder,corrosive	None
Safety Risks	None	Agent can settle	High heat released during reaction	Pressure leakage risk
Environmentally Friendly	Yes	No	No	No
