HD11F Single Throw Anti-Error Knife Switch

The HD11F Single Throw Anti-Error Knife Switch provides reliable isolation for industrial power systems, supporting 200A-1600A loads at AC380V/DC220V with 660V insulation. Engineered for safety, this anti-error knife switch features a single-throw design to prevent misoperation, alongside high short-time withstand currents (10-32kA for 1s). With 10,000-cycle mechanical endurance and low operating force (≤450N), the HD11F switch ensures effortless manual control in harsh environments. Compliant with AC-20 standards and 50Hz frequency, it is ideal for distribution panels and machinery requiring fail-safe disconnection and durable performance.

    Contact us
    product details

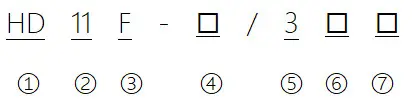

    Type Designation

    HD11F-Single-Throw-Knife-Switch-5jpg
    1 Isolator
    2 Handle-operated type
    3 Anti-Error
    4 Rated operating current
    5 Number of poles: 3 poles
    6 8: Front-mounted wiring (or Front wiring)
    9: Rear-mounted wiring (or Rear wiring)
    7 0: Without auxiliary contact
    1: With auxiliar contact

    Technical Parameters

    Rated operating current 200A 400A 600/630A 1000A 1500/1600A
    Rated insulation voltage 660V
    Rated working voltage AC380V, DC220V
    Rated frequency 50Hz
    Rated short-time withstand current (r.m.s.) AC-20
    1s 10kA 20kA 20kA 25kA 32kA
    Mechanical life (operation cycles) 10000 10000 5000 5000 3000
    Operating force F ≤250N ≤300N ≤350N ≤400N ≤450N

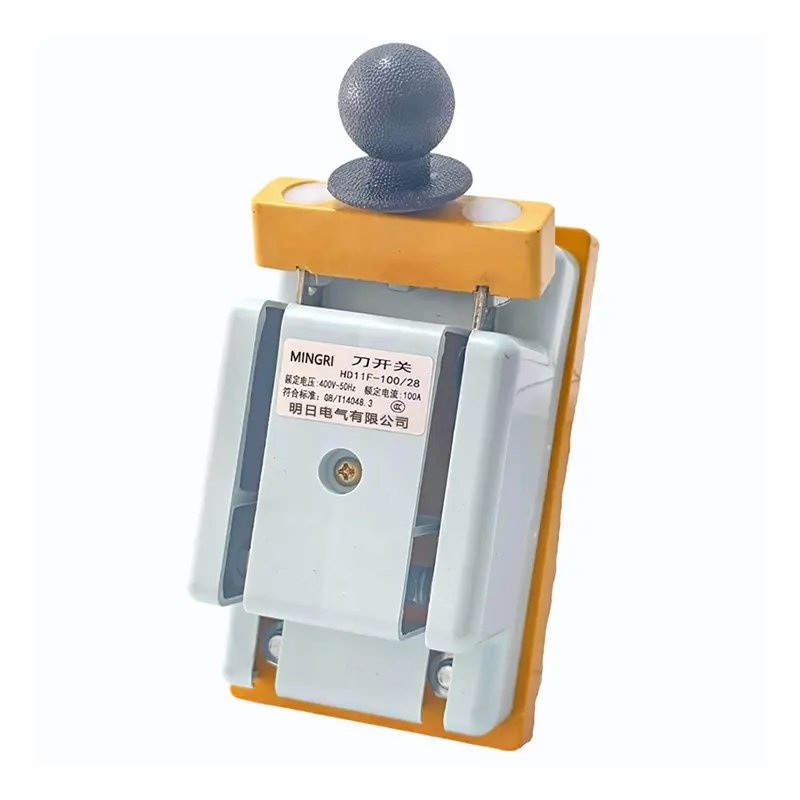

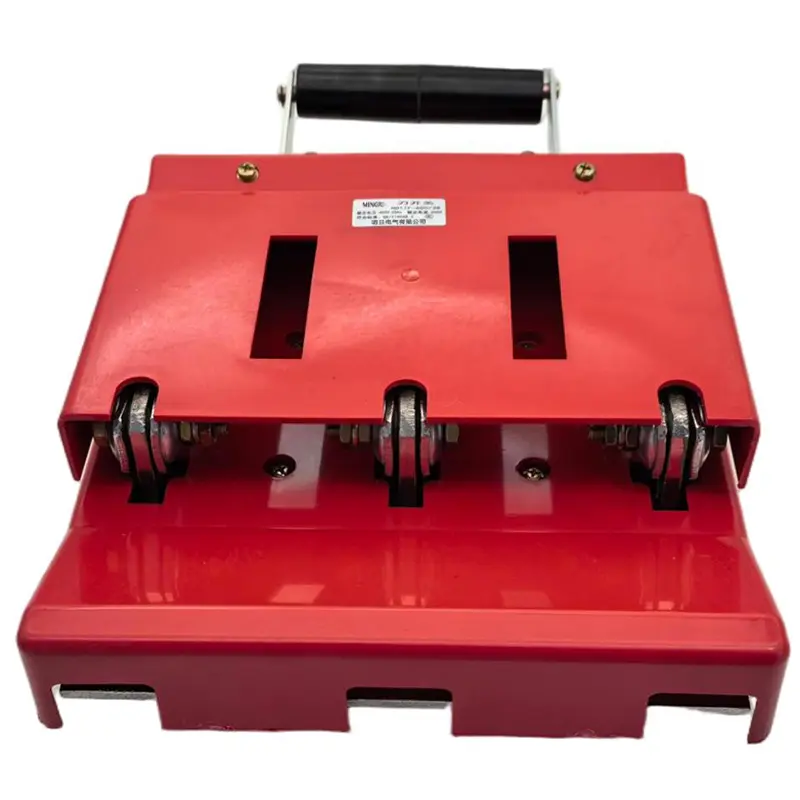

     product Display

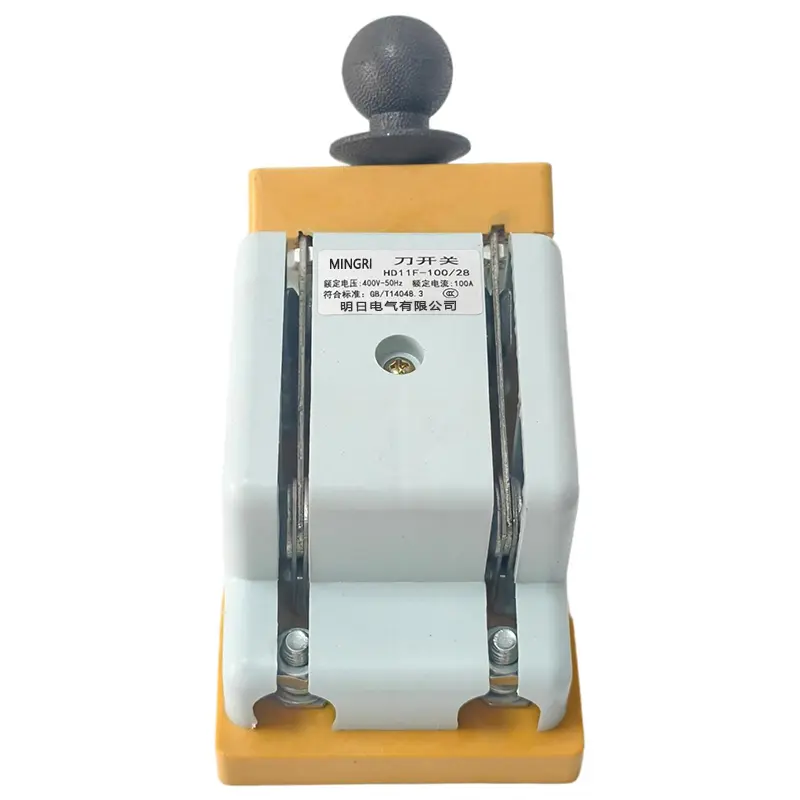

    HD11F-Single-Throw-Knife-Switch-(1)

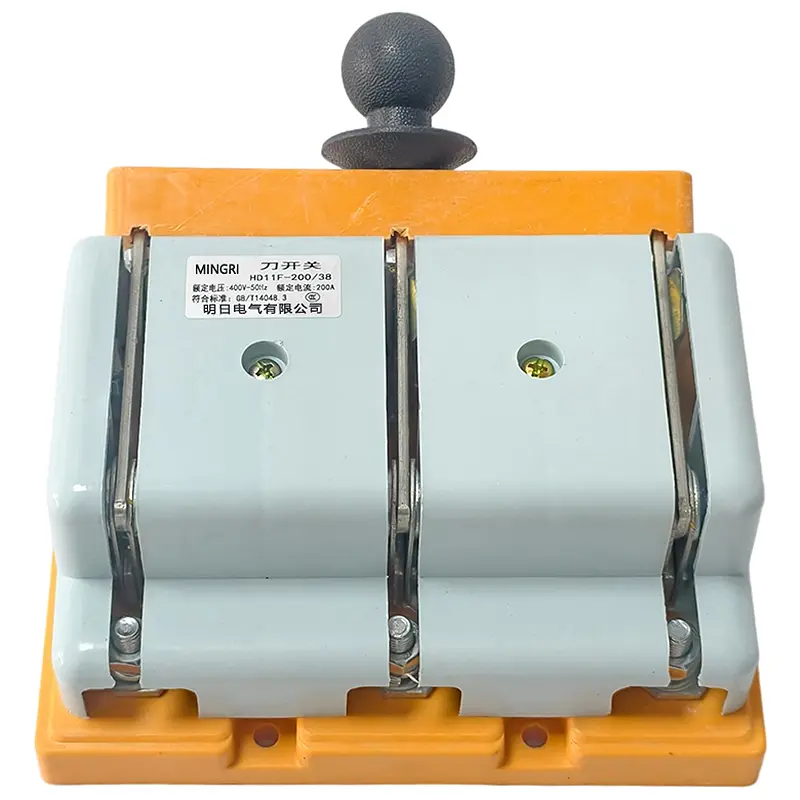

    HD11F-Single-Throw-Knife-Switch-(2)

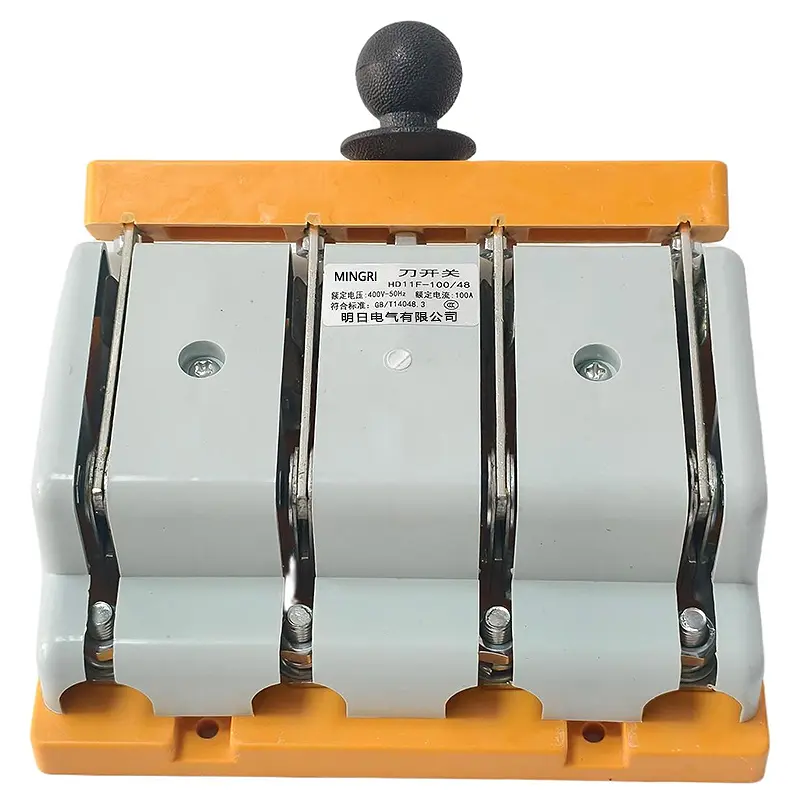

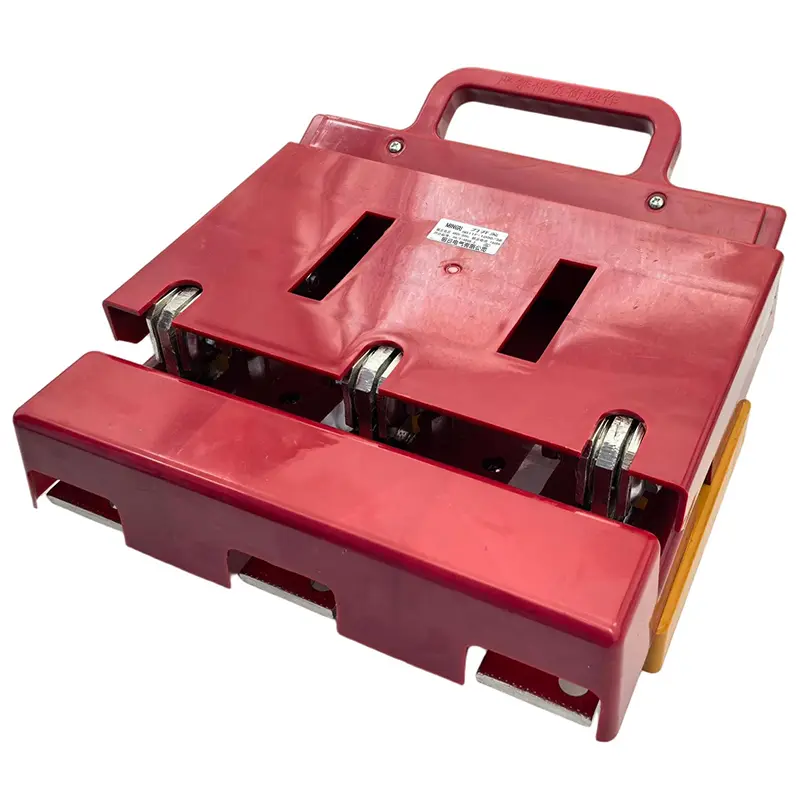

    HD11F-Single-Throw-Knife-Switch-(3)

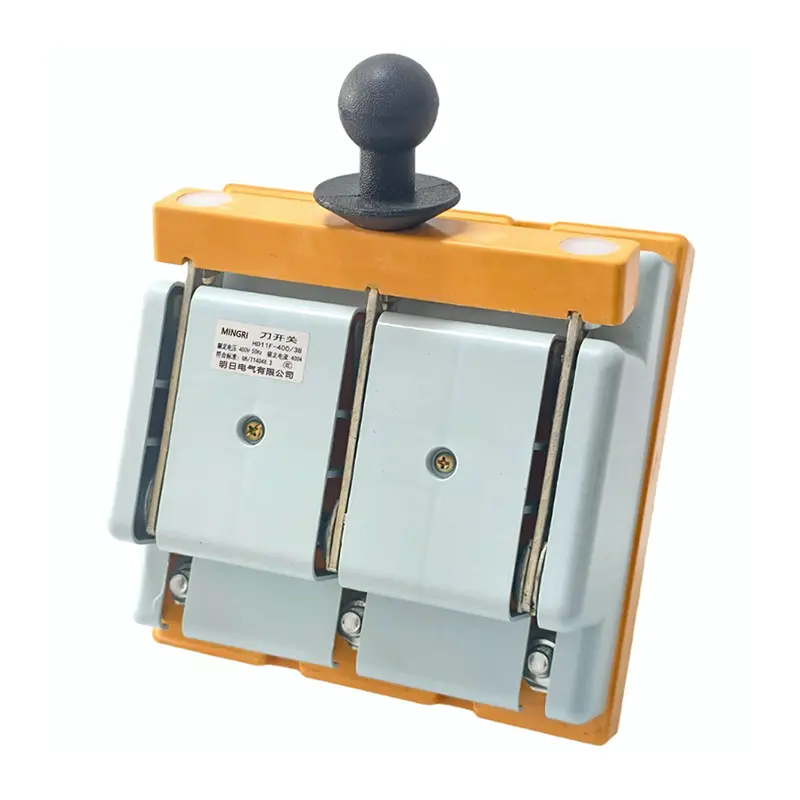

    HD11F-Single-Throw-Knife-Switch-(4)

    HD Protective Knife Switch Outline and Installation Dimensions

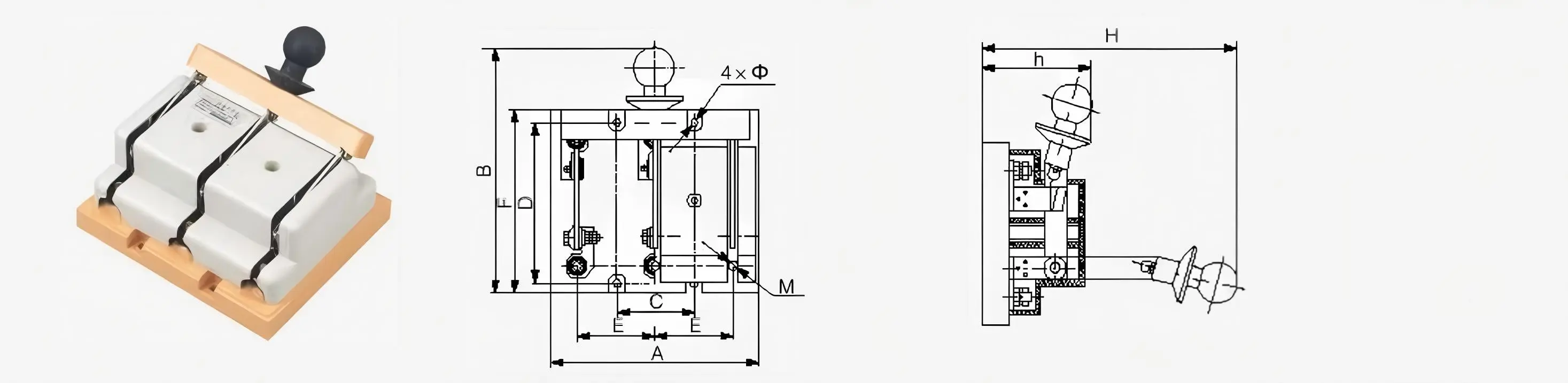

    The front wiring of HD11F is as shown below.

    HD11F-3
    Model specification 100 200 400 600 1000 100 I type
    2P 3P 4P 2P 3P 4P 2P 3P 4P 3P 3P 4P
    HD Protective Front-Connected Knife Switch A 92 140 190 92 190 260 200 220 300 290 322 200
    B 210 210 210 210 210 230 270 270 300 330 350 210
    C - 50 100 50 70 140 160 80 160 100 115 100
    D 140 140 140 140 140 140 190 190 190 160 140 140
    E 50 50 50 50 70 70 80 80 80 100 115 50
    F 160 160 160 160 160 160 215 215 215 260 275 158
    H 220 220 220 220 220 240 270 270 300 305 335 210
    h 110 110 110 110 110 110 135 135 145 125 160 110
    M 8 8 8 8 8 8 12 12 12 16 12 8
    A 7 7 7 7 7 7 7 7 7 9 9 8

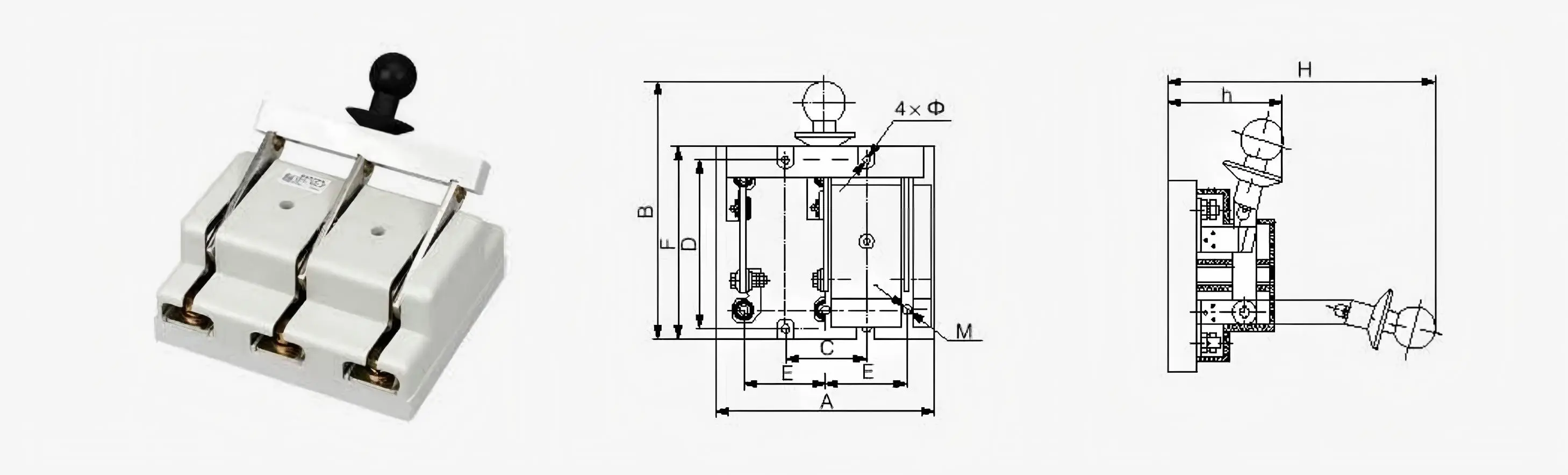

    The front wiring of New Anti-Error Knife Switch HD11F2 is as shown below.

    HD11F-5
    Model Specification 100 200 400 600
    HD11F2 Anti-Misoperation Knife Switch 3p 4p 3p 4p 3p 4p 3p
    A 115 156 170 200 195 235 225
    B 155 155 190 190 260 260 240
    C 40 80 60 100 70 120 80
    D 100 100 140 140 140 140 140
    E 40 40 60 50 70 60 80
    F 120 120 150 150 180 180 192
    H 165 165 198 198 250 250 250
    h 80 80 100 100 110 110 120
    M 10 10 15 15 10 10 10
    A 5 5 5 5 5 5 5

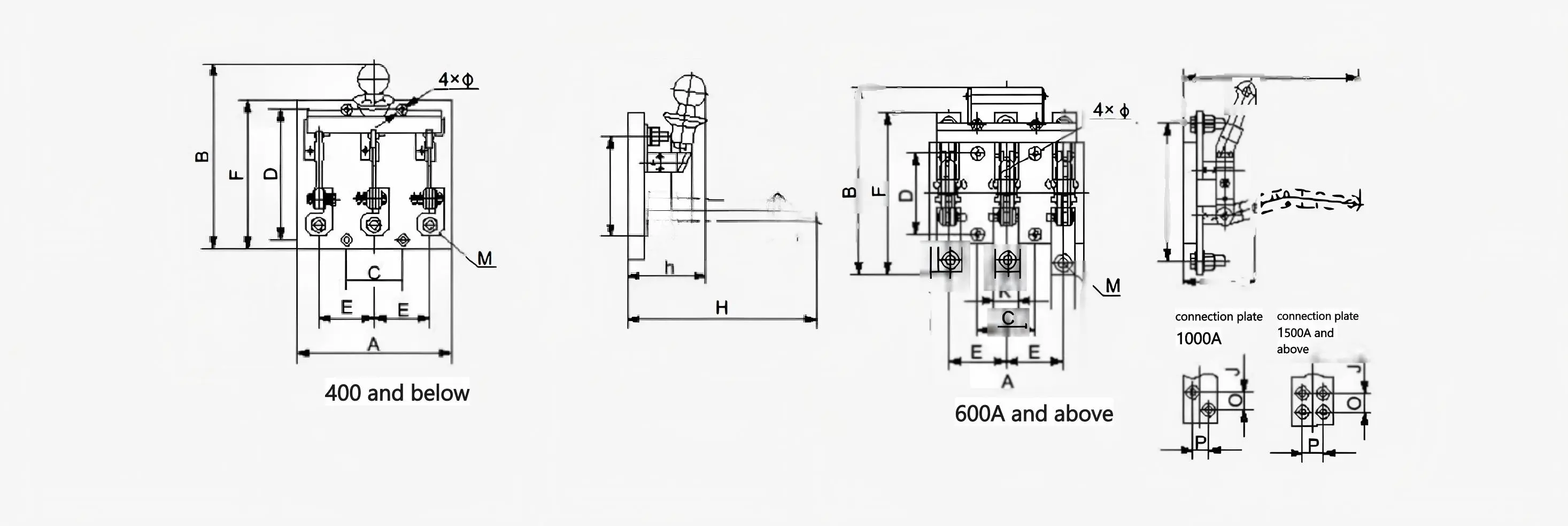

    HD Central Handle Open-Type Knife Switch Outline and Installation Dimensions

    HD11F-7
    Model specification 100 A 200A 400A 600A
    2P 3P 4P 1P 2P 3P 4P 1P 2P 3P 4P 1P 2P 3P 4P
    HD11 Central Handle Front-Connected Open-Type Knife Switch A 90 130 190 100 190 190 270 120 190 210 300 140 240 260 360
    B 210 210 200 210 210 210 230 270 270 270 300 350 350 330 330
    C - 40 100 60 120 70 140 80 160 80 160 100 200 100 200
    D 140 140 140 140 140 140 140 190 190 190 190 140 140 140 140
    E 50 40 50 - 70 70 70 - 80 80 80 - 100 100 100
    F 165 165 160 165 165 165 165 215 215 215 215 274 274 274 274
    H 210 220 220 220 220 220 240 270 270 270 300 330 330 310 310
    h 110 120 100 120 120 120 120 135 135 135 145 140 140 125 125
    J 110 110 - 110 110 110 110 146 146 146 146 234 234 234 234
    K - - - - - - - - - - - 40 40 40 40
    O - - - - - - - - - - - - - - -
    P - - - - - - - - - - - - - - -
    M 8 8 8 8 8 8 8 12 12 12 12 16 16 16 16
    A 7 7 7 7 7 7 7 7 7 7 7 9 9 9 9
    Model specification 1000A 1500A 2000A 3000A(2500A)
    1P 2P 3P 4P 1P 2P 3P 4P 1P 2P 3P 4P 1P 2P 3P 4P
    HD11 Central Handle Front-Connected Open-Type Knife Switch A 160 280 320 440 170 300 350 480 240 400 500 680 260 460 600 680
    B 380 380 360 360 410 410 390 390 420 420 420 420 450 450 450 450
    C 120 240 120 240 130 260 130 260 180 360 180 360 200 400 200 400
    D 140 140 140 140 140 140 140 140 140 140 140 140 140 140 140 140
    E - 120 120 120 - 130 130 130 - 180 180 180 - 200 200 200
    F 284 284 284 284 330 330 330 330 320 320 320 320 365 365 365 365
    H 380 380 360 360 390 390 370 370 380 380 380 380 390 390 390 390
    h 175 175 160 160 175 175 160 160 170 170 170 170 180 180 180 180
    J 208 208 208 208 230 230 230 230 204 204 204 204 230 230 230 230
    K 50 50 50 50 70 70 70 70 100 100 100 100 120 120 120 120
    O 25 25 25 25 35 35 35 35 40 40 40 40 45 45 45 45
    P 25 25 25 25 35 35 35 35 55 55 55 55 68 68 68 68
    M 12 12 12 12 12 12 12 12 12 12 12 12 16 16 16 16
    A 9 9 9 9 9 9 9 9 9 9 9 9 11 11 11 11
