Weekly Electrical Byte: What is Gas-Insulated Switchgear (GIS)?
Core Definition: A Compact, Integrated Substation
Gas-Insulated Switchgear (GIS) is a revolutionary high-voltage power distribution apparatus. It encapsulates almost all key substation components—except the main power transformer—such as circuit breakers, disconnectors, earthing switches, instrument transformers, busbars, and surge arresters, within a sealed metal enclosure filled with sulfur hexafluoride (SF6) insulating gas. Thus, a single GIS bay essentially functions as a highly integrated, self-contained miniaturized substation. Its design core leverages the superior insulating and arc-quenching properties of SF6 gas to completely isolate all live parts from the external environment.

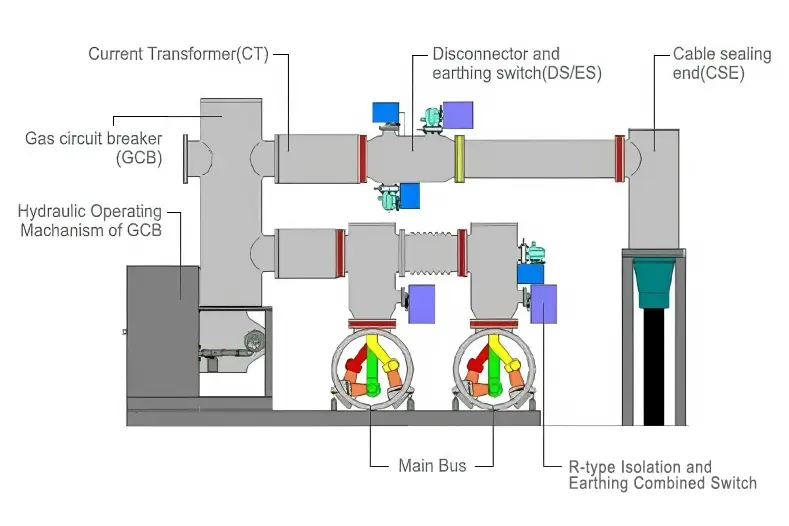

Structure Analysis: Modular Compartments & Key Components
A GIS is not merely a large tank; its interior is precisely divided into multiple independent gas compartments based on function. For instance, the circuit breaker typically occupies its own high-pressure compartment; busbars, voltage transformers, and surge arresters also often have separate compartments. This modular compartmentalization allows for the isolation, maintenance, or gas refilling of individual components without disrupting the operation of others. All electrical components are interconnected via internal conductors (busbars) within the enclosure, completely eliminating the exposed external connections found in traditional Air-Insulated Switchgear (AIS). SF6 gas density monitors continuously track the pressure in each compartment, ensuring insulation integrity.

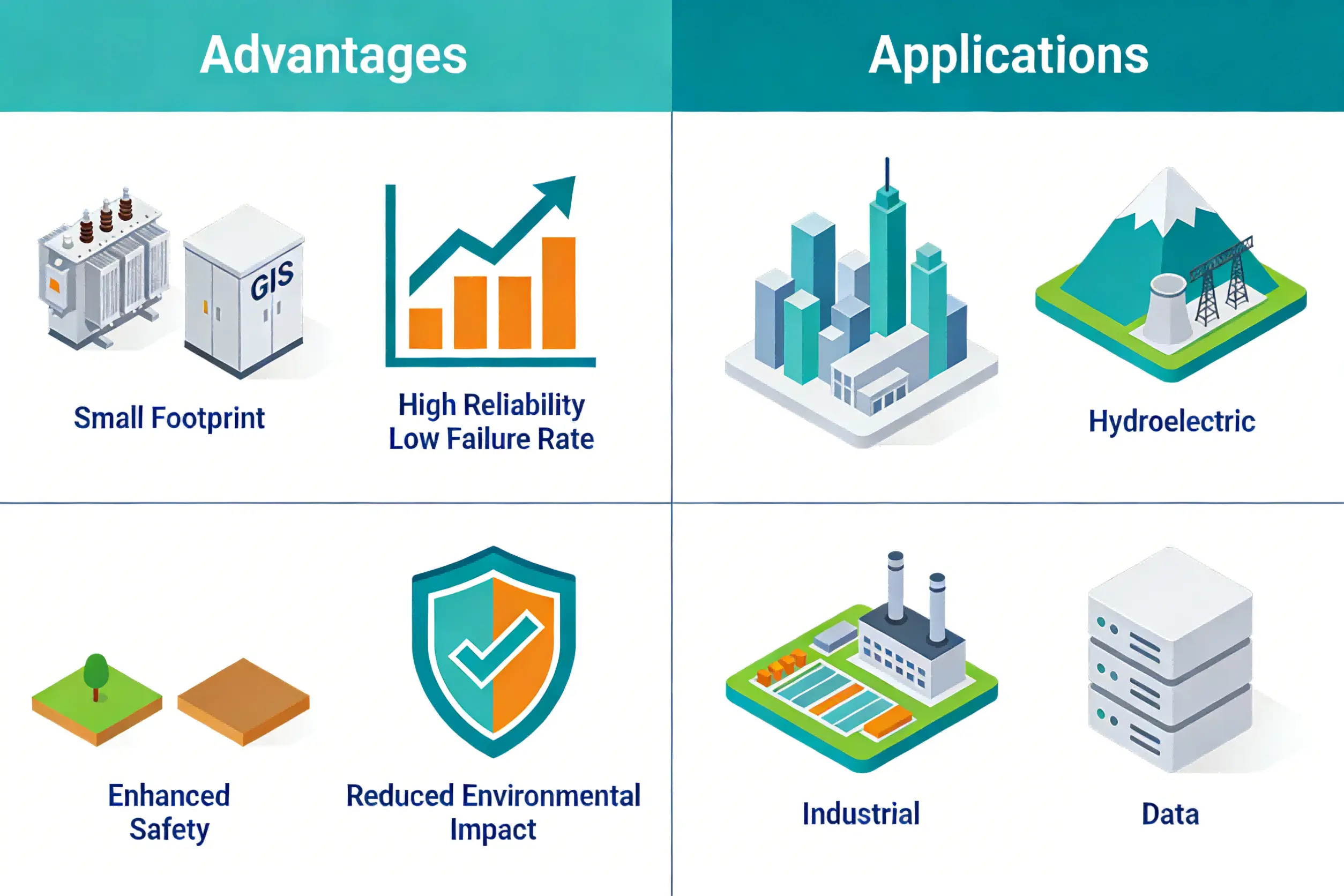

Key Advantages & Typical Applications
The exceptional performance of GIS makes it irreplaceable in specific scenarios. Its most prominent advantage is its extremely small footprint, requiring only 10% to 30% of the land area compared to a traditional Air-Insulated Substation (AIS) of equivalent capacity. This makes it ideal for urban centers with limited space, inside high-rise buildings, in high-altitude mountainous regions, or heavily polluted areas. Furthermore, the fully enclosed structure provides exceptionally high operational reliability (failure rates can be 60-80% lower than AIS) with minimal maintenance needs (major overhaul intervals can exceed 20 years), and completely eliminates risks of external electric shock and fire. Consequently, GIS is a core component in modern power grids and critical facilities at 110kV and above voltage levels, especially where compactness, reliability, and safety are paramount.
