Fixed vs. Drawout Air Circuit Breakers (ACBs): A Practical Guide for Selection

2025-08-12

Air Circuit Breakers (ACBs) are essential components in low-voltage electrical distribution systems, protecting circuits from overloads and short circuits. When selecting between fixed-type and drawout-type (drawer-type) ACBs, engineers must consider installation, maintenance, safety, and cost. This guide explains the key differences and helps you make the right choice.

1. Installation & Structural Design

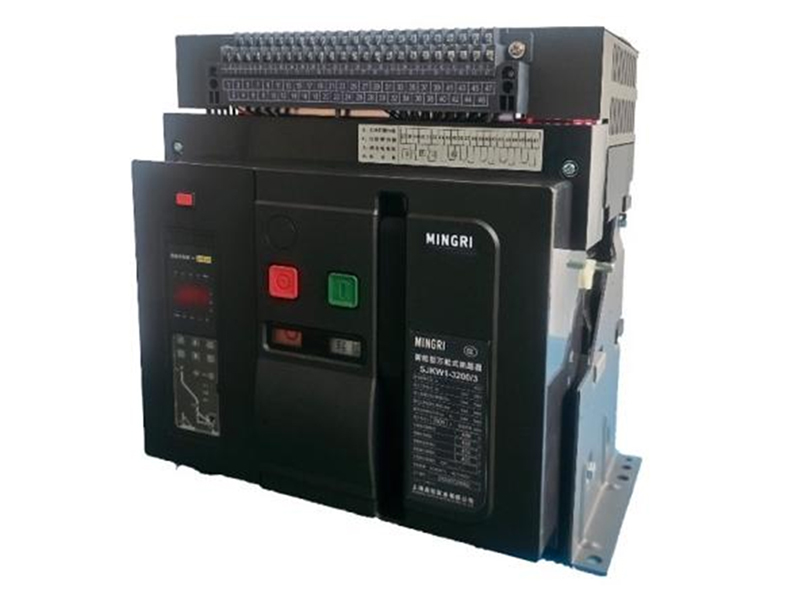

✱Fixed ACB:
-Permanently bolted into the switchboard or panel.
-Simple and robust design, requiring less space in the cabinet.
-Suitable for applications where frequent removal is unnecessary.
-Lower initial cost but harder to replace or repair.

✱Drawout ACB:
-Mounted on a removable chassis, allowing the breaker to slide in and out like a drawer.
-More complex mechanism but enables quick isolation for maintenance.
-Ideal for systems requiring minimal downtime during servicing.

2. Maintenance & Accessibility

✱Fixed ACB:
-Requires a complete power shutdown for any maintenance or replacement.
-Best for systems with infrequent servicing needs (e.g., small factories, backup power panels).
-Lower maintenance costs but higher operational disruption.

✱Drawout ACB:
-Can be safely disconnected and withdrawn without de-energizing the entire panel.
-Reduces downtime in critical environments (e.g., data centers, hospitals).
-Often includes safety interlocks to prevent accidental operation.

3. Cost & Long-Term Value

✱Fixed ACB:
-Lower upfront cost, making it attractive for budget-conscious projects.
-Higher long-term labor costs if frequent replacements are needed.

✱Drawout ACB:
-Higher initial investment due to the complex sliding mechanism.
-Lower lifetime maintenance costs, justifying its use in high-availability systems.

4. Key Selection Factors

Factor	Fixed ACB	Drawout ACB
Cost	Lower initial cost	Higher initial cost
Maintenance	Difficult,requires shutdown	Easy, hot-swappable
Space Efficiency	Compact but fixed	Requires extra space for movement
Safety Features	Basic	Advanced (interlocks, test positions)
Best Applications	Small industries, residential backup	Critical infrastructure, data centers

Conclusion: Which One to Choose?

✱ Choose Fixed ACB if:
-Budget is limited.
-The system rarely requires maintenance.
-Space is constrained, and a simple setup is preferred.

✱ Choose Drawout ACB if:
-Minimizing downtime is critical.
-Frequent maintenance or testing is needed.
-Safety and quick replacement are priorities.

The right choice depends on balancing cost, operational needs, and system reliability. For mission-critical applications, the drawout ACB’s flexibility and safety often justify its higher price.
