Weekly Electrical Byte: Demystifying Three-Zone Overcurrent Protection

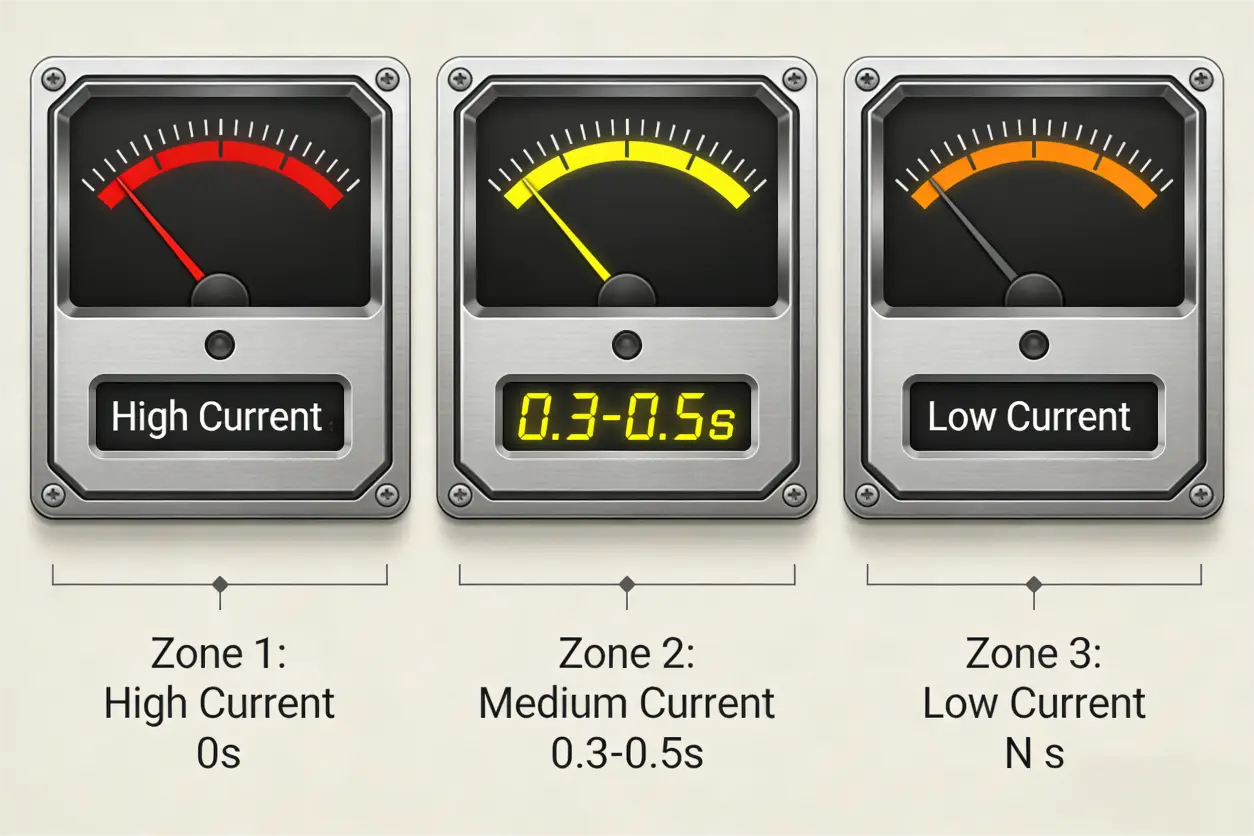

● Zone 1: Instantaneous Overcurrent Protection

○ Role: The "Shock Trooper." Fastest operation (milliseconds), no intentional time delay.
○ Setting: Highest current setting, based on the maximum fault current at the end of the protected line.
○ Mission & Coverage: Protects a portion of the line near the source (~80% of line length), NOT the full line. Serves as primary protection for part of the line, prioritizing speed over coverage.

● Zone 2: Time-Delayed Overcurrent Protection

○ Role: The "Main Defender." Has a short time delay (typically 0.3-0.5 seconds).
○ Setting: Lower current setting than Zone 1, set to protect the entire line and reach into the beginning of the next downstream line.
○ Mission & Coverage: Protects the FULL LENGTH of its own line and acts as remote backup for the next line. It is the core primary protection for the line.

● Zone 3: Definite-Time Overcurrent Protection

○ Role: The "Ultimate Backup." Has a longer time delay (several seconds).
○ Setting: Lowest current setting, based on the maximum load current of the line.
○ Mission & Coverage: Protects its own line and the full length of the next and even subsequent lines. Acts as backup protection for its own line and neighboring lines, providing the last line of defense if primary protection fails.

     The core value of the three-zone scheme is to achieve "selective tripping." When a fault occurs, the protection closest to the fault (e.g., Zone 2 of that line) operates first. Its upstream Zone 1 may detect the fault but not operate due to its limited reach, while Zone 3 waits in the background with a longer delay. This coordination minimizes the outage range and maximizes power supply continuity. It provides a complete protective system for distribution networks, from fast fault clearance to multiple layers of backup, forming the cornerstone of safe and stable system operation.
